Gordian Knot

Gordian Knot contains facilities to do pretty much anything you need in terms of video encoding.

Table of content:

1: Ripping and demuxing
2: Select a project save slot
3: Find the right bitrate
4: Select a resolution
5: Add chapters and subtitles

Step 1: Ripping and demuxing

Robot4Rip combines the best tools for the task: DVD Decrypter is used to rip the DVD, then a DGIndex project is created, BeSweet is used for audio encoding and if desired VobSub is used to rip subtitles.

Step 2: Select a project save slot

Start up Gordian Knot, select a free slot in the dropdown list at the bottom right of the window, click rename to give it a good name and all your settings will be saved in this slot and can be reused later on.



Step 3: Find the right bitrate

In GKnot go to the bitrate tab.

Load the DGIndex project file (.d2v) by clicking on the Open button and selecting the .d2v file you've created before.

If FPS equals 29.970 you did not choose Force Film in DGIndex and will have to perform IVTC (explained later on in the guide). For now set FPS to 23.976. In all other cases (FPS = 25.00 or FPS = 23.976) you don't have to do anything.



GKnot automatically reads the number of frames and the framerate from the .d2v file. Selecting your DGIndex project file will open another window where you can see the video. Put that window in the background but do not close it.

Then select the x264 codec:

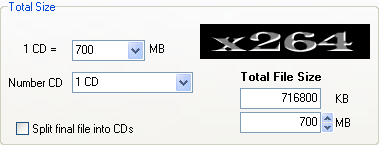

Now set your desired filesize and number of CDs:

This is pretty straightforward. Enter the CD size, click on the X CD button or enter a filesize manually.

When creating rips for multiple CDs also select split file into CDs to have your output split by CD size automatically. When you're including VobSub subs for several languages you better uncheck the auto-split though as the subtitle overhead will not be taken into account when splitting.

Now at this point you also need to select a container. If you don't know what that is, you should probably not touch this option, but if you do, here's a quick rundown:

AVI is the default. It's the oldest and most proven container. It can be opened by pretty much any program and does not require any special installation for playback. But it is also the most limited. Even VBR audio can only be used by using certain tricks (but they've been around for years and always work fine), chapters, included subtitles, and other audio than MP3 and AC3 is not possible (well, technically it is but it's a bit complex). OGM was mostly created to offer support for the Ogg Vorbis audio format. It also offers chapters, built-in subtitles (in a text only format), and MP3 and AC3 audio is also supported. MKV, short for Matroska, is the most versatile container and can handle pretty much anything you can throw at it. Both OGM and MKV require special program for editing and special filters for playback.

Then we have the Interleaving and AVI-Overhead options. When you add an audio track to a movie you will notice that the size of the output is larger than the sum of both video and audio input. GKnot can take care of this phenomenon for you so you don't have to worry about getting oversized movies. Interestingly enough during the testing phase of GKnot 0.28 it was noticed that for XviD you best uncheck Calculate Frame-Overhead or you'd get undersized files.

The default is to create a VBR MP3 in which case you have to select 1x vbr-mp3 as shown on the left. If you want another type of audio track or multiple tracks please select the appropriate option instead.

Then let's actually configure the audio tracks themselves:

First check Size, then press the select button and select your first audio file (the one you got from Robot4Rip - it can be an AC3 file, an MP3 file, or an OGG file depending on what you set up in Robot4Rip). If you have a 2nd audio track repeat this procedure for Audio B.

If you should only have AC3 files but wanted to have something else, then your Robot4Rip setup was done improperly and it did not encode audio. There's no reason to be alarmed though. If the MP3/OGG file is missing, just select Bitrate rather than Size, and select your desired bitrate. And make a mental note that you have to configure audio encoding prior to the start of encoding (it's in the guide, but you need to remember that you have to perform that step).

Note that this configuration is not final. Just before you start encoding, you'll be asked to select and configure your audio again, and based on that configuration, the video bitrate will be calculated. So, even if you forget about audio here, your files will not be oversized if you configure audio properly just before starting to encode. However, when performing a compressibility check (more about that later), it is important that you configure audio properly, or your resolution choice might be flawed.



Step 4: Select a resolution

Then click on the Resolution tab. The first step is the cropping.

Press the Auto Crop button (this button is only available when you have loaded the DGIndex project file). GKnot will go through a couple of frames in the preview window then you'll see the results. If they are about what you'd expect select Smart Crop will will give you the ideal crop values to minimize the aspect ratio error.

There's another issue here: If you go to the options tab again you will find the "Follow ITU-R BT.601 Standard" button. As I'm one of the people who thinks PC resizing is okay (and in fact every of my guides is written to respect that resizing rather than this ITU standard) I deactivate this option.

Then you have to configure your TV system (PAL: Europe, South America, Australia, New Zealand and Middle East, NTSC: North America, Far East), and the Input Pixel Aspect Ratio. The latter can usually be determined by looking at the back of your DVD. If it doesn't say 16:9 or 4:3, there's usually a note like "this movie has been modified to fit your screen" (that means 4:3, and in the age of 16:9 TV is quite insulting to us modern TV owners ;), or "enhanced for widescreen TVs" (that means 16:9). If you were to use an AVI input you'd have to set the Input Pixel Aspect Ratio to 1:1.

You can go to the window that shows your video and select resized from the view menu and check if it truly looks okay. And while you're at it, move the slider to advance in the movie until the end credits start and press the Set Credits Start button.



Now you have to set the resolution by moving the big slider.

You can see the Aspect Ratio error in one of the fields, and as you can see the results are close to perfect. You also have to keep watching the Bits/Pixel values (Output resolution):

It's a bit guesswork as you cannot predict compressibility of your movie but here's some hints:

Mode the slider until you're within this range. These values are a rough estimate for XviD encoding but you should not consider them to be the laws of nature. Sometimes values below the given ones may result in a shitty looking movie and in other cases going below these values will still result in a great looking movie.

In case you had r4r extract the subtitles you'll also have to perform the following:

Use the add button to add your 2 VobSub subtitle files (they have the extension .rar and .idx - or in case you do not have WinRar installed .sub and .idx - I strongly suggest you get Winrar though because it can significantly compress the subtitles and VobSub can handle compressed subtitles on the fly so no decompression is required prior to playing back a movie) so that you'll have enough space to store them onto your CD(s) after the movie has been encoded.



Step 5: Chapters and subtitles (optional)

This step only applies if your output is either OGM or MKV. These two containers allow you to put text based subtitles (.srt files) inside the container rather than to have them externally (or use VobSub subtitles, which are also additional files that you have to put onto your CD when you burn the movie). If you want to use VobSub subtitles (they are image based and are imho to be prefered over text based subtitles), forget about the subtitles in this step (you can still have chapters though). So, if you want to use the subtitle and / or chapter facilities of the OGM / MKV container, go to the Subtitles / Chapters tab.

Check Add Chapter Info to Video, then press Load, and select the .txt file Robot4Rip created for you (it's in the same directory as your DGIndex project file).

You'll then see the chapters that will be added to the video. You can also change the chapter title to something more meaningful if you like. Pressing Reset will remove all the chapters.



Finally, you can add .srt (Subrip, subtitles in text format), to your video:

Press Select, and select an .srt file you want to add to the video.
